BARS & ANGLES

  • Long Products

STEEL

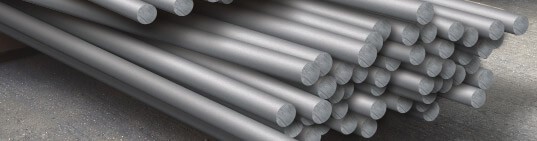

Round Bars

OD Range: Ø 10 mm - Ø 125 mm

Length: up to 12 meters

Standard: EN 10060:2003, DIN 1013-1:1976

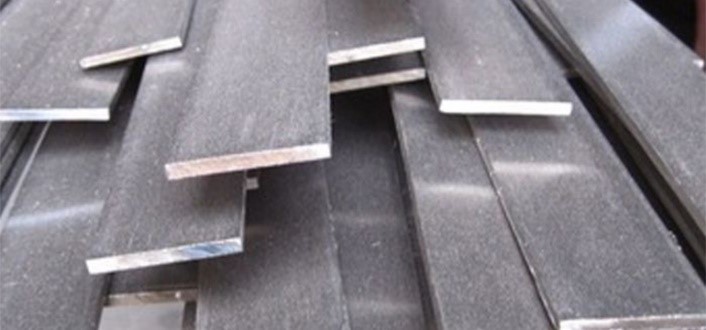

Flat Bars & Wide Flats

Width: 20 mm - 300 mm

Thickness: 4 mm - 60 mm

Length: up to 12 meters

Standard: EN 10058:2018, DIN 1017-1:1967

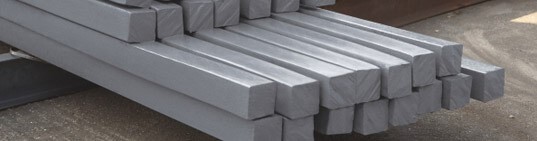

Square Bars

Size Range: 10 mm - 56 mm

Length: up to 12 meters

Standard: EN 10059, DIN 1014

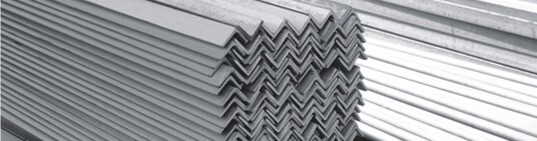

Equal Angles

Size range: 20 x 20 x 3 mm - 130 x 130 x 12 mm

Length: up to 12 meters

Standard: EN 10056-1:2017, DIN 1028:1994, EN 10056-2:1993

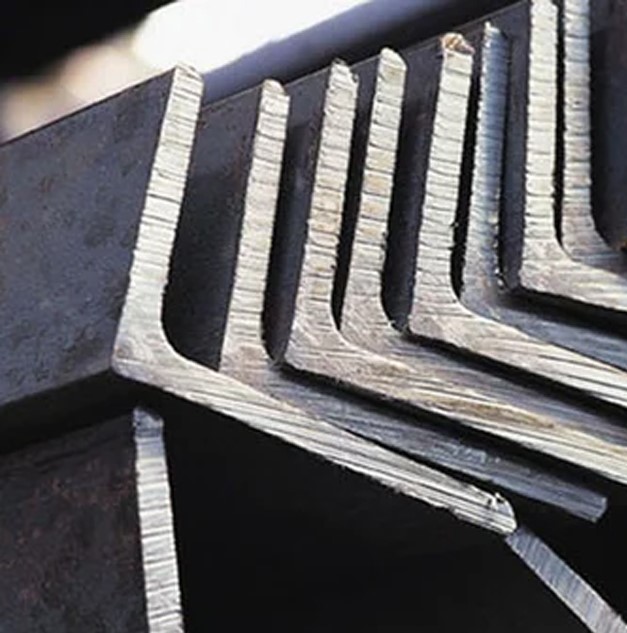

Unequal Angles

Size Range: 30 x 20 x 3 mm – 200 x 150 x 15 mm

Length: up to 12 meters

Standard: EN 10056-1:2017, DIN 1029:1994, EN 10056-2:1993

APPLICATIONS OF LONG STEEL PRODUCTS

Long steel products find diverse applications across various sectors, playing a crucial role in modern infrastructure and industrial development. Here are some key areas where they are extensively used:

Construction
  • Structural Steel: I-beams, H-beams, channels, and angles form the backbone of many buildings and bridges, providing the necessary support and load-bearing capacity.
  • Structural Steel: I-beams, H-beams, channels, and angles form the backbone of many buildings and bridges, providing the necessary support and load-bearing capacity.
  • Pre-engineered Buildings: Steel frames provide a rapid and efficient construction method for warehouses, factories, and other commercial structures.
Infrastructure
  • Railway Tracks: Rails, sleepers, and other components for railway infrastructure.
  • Bridges: Structural components for bridges of various types, including steel bridges.
  • Pipelines: Pipes and tubes for transporting water, gas, and oil.
Automotive
  • Chassis and Frames: Structural components for vehicles, including cars, trucks, and buses.
  • Engine Components: Crankshafts, connecting rods, and other critical engine parts.
Machinery & Equipment:
  • Industrial Machinery: Components for various industrial machinery, including gears, shafts, and bearings.
  • Agricultural Equipment: Frames, implements, and other components for agricultural machinery.
Energy
  • Power Generation: Components for power plants, such as turbines and generators.
  • Oil & Gas: Piping systems, valves, and other components for the oil and gas industry.

This list highlights some of the major applications of long steel products. Their versatility, high strength, and durability make them indispensable in modern society, contributing to the development and advancement of various industries.
